Lateral Channel Self Priming Pump

Lateral Channel Self Priming Pump
Lateral Channel Self Priming Pump
Product Code : 04
Brand Name : K. G. INDUSTRIES
Product Description

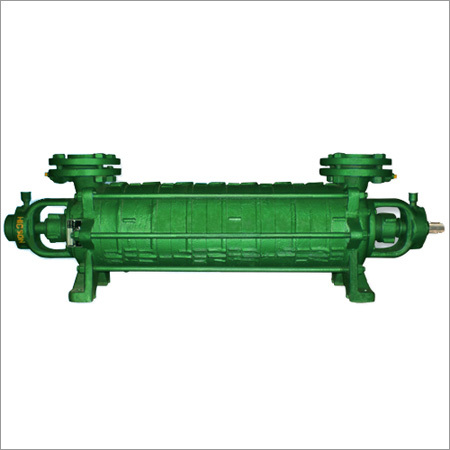

'AL' Model Lateral Channel Self Priming Pump High Head

Applications :

  • Industrial
  • Boiler Feed
  • Transfer of Liquid containing air, gas
  • Marine
  • Refrigeration
  • Fuel Oil
  • Sprinklers
  • Car Washing etc.

Features :

  1. Pump type ‘AL’ are horizontal, lateral channel, self priming pump acting on regenerative principle. Both suction and delivery branches are vertical so that liquid remains inside the pump even when the pump is switched off. This ensures priming of the pump. The rotor of the pump is supported by antifriction bearings at both ends. These bearings are grease lubricated.
  2. The pumps are provided with stuffing box packing. Depending on the application, mechanical seal can be provided.
  3. Pump type ‘AL' are designed for continuous operation handling only clear liquid, free from any suspended particles.

Material :

  • Suction Cover, Delivery Cover, Intermediate Parts : Close grained Cast Iron
  • Impeller : H.T. Brass
  • Shaft : Stainless Steel
  • Shaft Sealing : Grand Packing
Special materials available on demand.

Technical Data :

  • Capacity : Max. 880 LP.M.
  • Head : Max. 260 M.
  • Speed : 1450 RPM.
  • Temperature : Max. 60°C for Standard Pump  ;    Max. 90°C for Hot Water Pump (designated by 'H')
  • Suction Lift : Max. 8M.
  • Rotation : Clockwise when looking from drive end. Anti-clockwise in 'RR1 Pumps
Trade Information
  • Main Domestic Market
  • Uttar Pradesh, Maharashtra, Madhya Pradesh, Assam, All India
