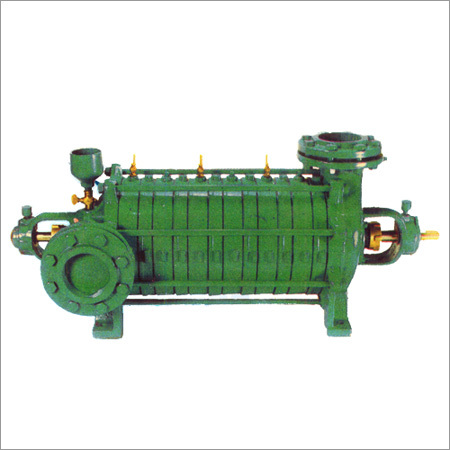

Multistage Centrifugal Pump

Multistage Centrifugal Pump
Multistage Centrifugal Pump
Product Code : 08
Product Description

Backed ourselves with sound amenities and talented personnel, we have emerged as one of the leading manufacturer and supplier of Mh” Model Non Self Priming Centrifugal Pumps. Our offered pump is built as single stage or multistage pumps up to 10 stages. These pumps are highly acclaimed for durability, non-corrosive nature, fine finish and dimensional stability. The intermediate parts of this range is designed to lead the water from the outlet of one impeller to the inlet of the adjacent impeller with minimum of friction resulting in high efficiency of the pumps. We make sure to deliver our Mh’ Model Non Self Priming Centrifugal Pumps at our esteemed customers end within stipulated time frame.

'MH' Model Non Self Priming Centrifugal Pumps

Description :

Pump type 'MH' are horizontal, non self priming centrifugal pumps. The pumps are built as single stage or multistage pumps up to 10 stages. Suction branch is horizontal and delivery branch is vertical. The intermediate parts are designed to lead the water from the outlet of one impeller to the inlet of the adjacent impeller with minimum of friction resulting in high efficiency of the pumps. The rotor of the pump is supported by anti-friction bearings at both ends except for pump series 'MH' 45oK in which rotor is supported by anti-friction bearing at the drive end and bush bearing at the free end. Anti-friction bearings are grease lubricated. Pumps are provided with stuffing box packing. Depending upon the application Mechanical Seal can also be fitted.

Applications :

  • Industrial
  • Marine
  • Refrigeration
  • Fuel Oil
  • Fire Fighting
  • Pressure Boosting
  • Sprinkler Irrigation
  • Mining etc.

Standard Material of Construction

  • Casing - Close grained Cast Iron
  • Impeller - Close grained Cast Iron
  • Shaft - Stainless Steel

Special material of construction also available.

  • Direction of rotation is clockwise looking from drive end.
  • Tolerance on discharge is i10% at rated head and rated R.P.M.
  • Discharge indicated in curves applies to liquid at barometric height of 760 mm mercury and at a
  • temperature of 30° C.
  • BMP indicated in curves is for specific gravity of 1 .0 and viscosity of IcSt.
  • Maximum permissible speed is 1800 RPM. for all pumps except pump series 'M H' 45oK for which
  • maximum permissible speed is 3000 RPM.
  • Before starting the pump it must be filled with liquid to ensure priming.
  • Before starting, valve on suction side must be fully opened and valve on delivery side closed

MH 820, MH 1020 Series

Pump Type

A

A1

B

C

D

E

F

Shaft Dimns at Coupling

Suction and Delivery Flange Details

L

M

N

O

P

Q

R

S

S1

T

U

Weight in Kgs. (Approx)

G

H

I

J

K

PCD

No. of Hole

Hole DIA

MH 821 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

101

56

30

317

280

274

103

65

65

15

146

95

MH 822 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

181

56

30

397

280

274

183

65

65

15

226

100

MH 823 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

261

56

30

477

280

274

263

65

65

15

306

110

MH 824 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

341

56

30

557

280

274

343

65

65

15

386

130

MH 825 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

421

56

30

637

280

274

423

65

65

15

466

150

MH 826 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

501

56

30

717

280

274

503

65

65

15

546

175

MH 827 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

581

56

30

797

280

274

583

65

65

15

626

200

MH 828 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

661

56

30

877

280

274

663

65

65

15

706

230

MH 829 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

741

56

30

957

280

274

743

65

65

15

786

260

MH 830 BB

200

220

180

20

200

50

250

26

29

8

200

80

160

4

18

821

56

30

1037

280

274

823

65

65

15

866

300

MH 1022 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

194

56

40

431

277

273

187

70

65

15

234

125

MH 1023 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

279

56

40

516

277

273

272

70

65

15

319

145

MH 1024 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

364

56

40

601

277

273

357

70

65

15

404

165

MH 1025 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

449

56

40

686

277

273

442

70

65

15

489

185

MH 1026 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

534

56

40

771

277

273

527

70

65

15

574

205

MH 1027 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

619

56

40

856

277

273

612

70

65

15

659

225

MH 1028 BB

220

225

214

18

270

70

340

26

29

8

220

100

180

8

18

704

56

40

941

277

273

697

70

65

15

744

260
